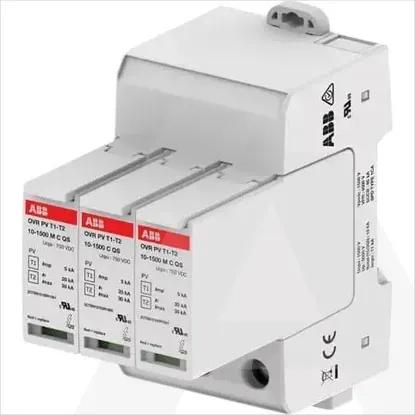

2CTB812100R1500 | OVR PV T1-T2 10-1500 P QS
Code: 1938074
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
System configuration DCYes
System configuration ITNo
System configuration TNNo
System configuration TN-CNo
System configuration TN-C-SNo
System configuration TN-SNo
System configuration TTNo
System configuration otherNo
Number of conductors (without earthing)2
Nominal discharge surge current (8/20)20kA
Max. discharge surge current (8/20)20kA
Nominal voltage AC-V
Nominal voltage DC1500V
Max. continuous voltage AC1500V
Max. continuous voltage DC1500V
Max. PV-voltage1500V
Voltage protection level5kV
Voltage protection level L-N-kV
Voltage protection level N-PE-kV
Max. overcurrent protection device, parallel connection (fuse)10A
Max. overcurrent protection device, series connection (fuse)-A
Short-circuit breaking capacity (Isccr)11kA
Integrated short-circuit protectionNo
Integrated short-circuit protection selective to fuse gG-A
Integrated backup fuseNo
Leakage-current freeNo
Mounting methodOther
Construction size3 modular spacing
Max. conductor cross section solid (solid, stranded)35mm²
Max. conductor cross section flexible (fine-strand)25mm²
With remote signalling contactNo
Signalling at the deviceOptic
Category type 2Yes
Degree of protection (IP)IP20
