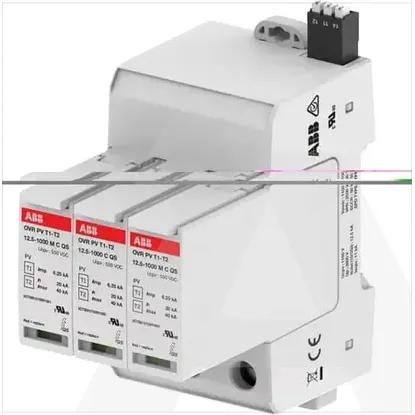

2CTB812121R1000 | OVR PV T1-T2 12.5-1000 P TS QS
Code: 1938079
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Nominal voltage AC-V
Max. continuous voltage AC1100V
Voltage protection level L-N-kV
Voltage protection level N-PE-kV
System configuration TN-C-SNo
System configuration DCYes
System configuration TN-SNo
Mounting methodDIN rail (top hat rail) 35 mm
Nominal discharge surge current (8/20)20kA
System configuration otherNo
Number of conductors (without earthing)2
Max. PV-voltage1000V
Max. continuous voltage DC1000V
Integrated backup fuseNo
With remote signalling contactYes
Short-circuit breaking capacity (Isccr)11kA
Nominal voltage DC1000V
Max. discharge surge current (8/20)40kA
Max. conductor cross section flexible (fine-strand)25mm²
Construction size3 modular spacing
Signalling at the deviceNone
System configuration ITNo
Max. conductor cross section solid (solid, stranded)35mm²
System configuration TNNo
System configuration TTNo
Voltage protection level3.8kV
System configuration TN-CNo
Category type 2Yes
Degree of protection (IP)IP20
