Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Nominal voltage DC1000V
Construction size3 modular spacing
Voltage protection level3.8kV
Degree of protection (IP)IP20
Signalling at the deviceNone
Max. continuous voltage DC1000V
Mounting methodDIN rail (top hat rail) 35 mm
Max. continuous voltage AC-V
Number of conductors (without earthing)2
Nominal voltage AC-V
Voltage protection level L-N-kV
Category type 2Yes
With remote signalling contactNo
Nominal discharge surge current (8/20)20kA
System configuration TN-CNo
Integrated backup fuseNo
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TN-SNo
System configuration TNNo
System configuration ITNo
System configuration DCYes
Max. PV-voltage1000V
Voltage protection level N-PE-kV
Max. conductor cross section solid (solid, stranded)35mm²
System configuration TTNo
System configuration TN-C-SNo
Short-circuit breaking capacity (Isccr)11kA
Max. discharge surge current (8/20)40kA
System configuration otherNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

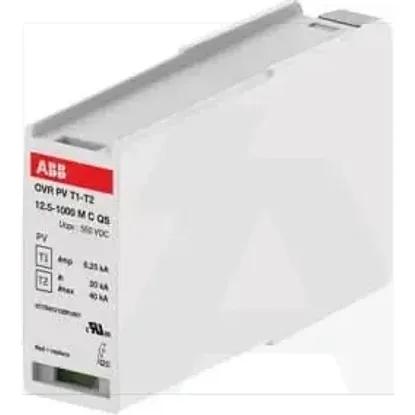

2CTB812122R1001 | OVR PV T1-T2 12.5-1000 M C QS
