Details
- •Protective hose systems

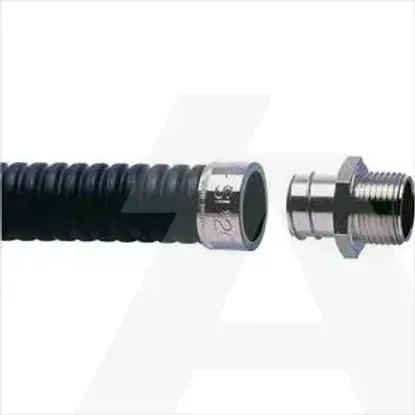

- •Screw connection for protective metallic hose
- •10 KOM
- •ABB
Technical specifications
Construction typeExternal thread
ModelStraight
Thread length12mm
Surface protectionNickel-plated
Total length36.5mm
Total height30mm
Lowest inner diameter hose19mm
Operating temperature-50 - 350°C
Material housingBrass
Thread typeMetric
Revolving threadNo
Max. outer diameter hose25mm
Approved in combination with protective conduit FINo
Number of thread lashes-
One-pieceNo
Approved in combination with protective conduit ULNo
Thread size CTG G-
Degree of protection (IP) conduit dependant54 - 54
Nominal diameter25mm
Approved in combination with protective conduit CSANo
Thread connection sizeM25 x 1.5
Connection type screw connection to housingThread
Approved in combination with protective conduit according to DIN EN 61386-23No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
7TCA296020R0194 | SP25/M25/A
