Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated insulation voltage Ui690V
Rated current1A
Over voltage category3
Width in number of modular spacings2.5
Voltage typeAC
Pollution degree3
Built-in depth44mm
Release characteristicK
Current limiting class-
Rated voltage400V
Frequency50 - 60Hz
Explosion-proofNo
Number of protected poles3
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 6mm²
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Ambient temperature during operating-20 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Connectable conductor cross section multi-wired1 - 6mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V100kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Number of poles (total)3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

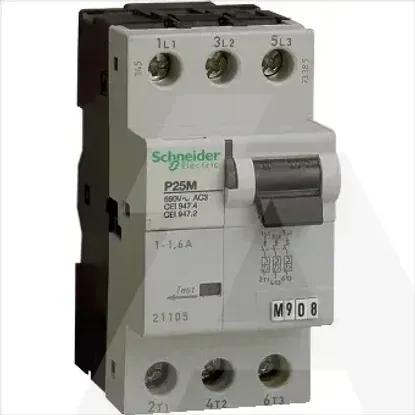

21104 | Prekidac Motorski P25M 3P 1A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
690V
Rated current
1A
Over voltage category
3
Width in number of modular spacings
2.5
Voltage type
AC
Pollution degree
3
Built-in depth
44mm
Release characteristic
K
Current limiting class
-
Rated voltage
400V
Frequency
50 .. 60Hz
Explosion-proof
Number of protected poles
3
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 .. 6mm²
Flush-mounted installation
Concurrently switching neutral conductor
Ambient temperature during operating
-20 .. 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Connectable conductor cross section multi-wired
1 .. 6mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
100kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100kA
Rated impulse withstand voltage Uimp
6kV
Additional equipment possible
Number of poles (total)
3
