Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Selective protectionYes
Connectable conductor cross section solid-core1 - 35mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated voltage230V
Explosion-proofNo
Leakage current typeA
Short-time delayed trippingNo
Voltage typeAC
Mounting methodDIN rail
Frequency50 Hz
With interlocking deviceNo
Surge current capacity0.25kA
Width in number of modular spacings3
Pollution degree2
Rated insulation voltage Ui500V
Short-circuit breaking capacity (Icw)-kA
Degree of protection (IP)IP20
Built-in depth45mm
Additional equipment possibleNo
Ambient temperature during operating-5 - 40°C
Rated impulse withstand voltage Uimp4kV
Number of poles2
Rated current25A
Rated fault current0.03A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

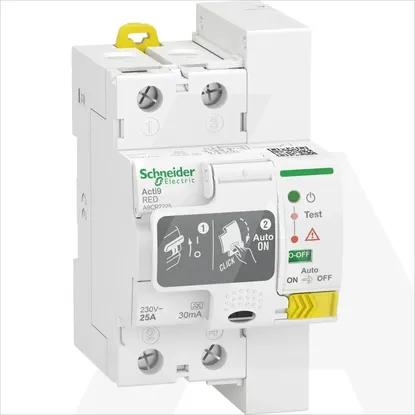

A9CR2225 | ACTI9 RED 2P 25A 30MA a Tip
