Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of poles2
Voltage typeAC
Rated voltage230V
Rated insulation voltage Ui500V
Rated current40A
Mounting methodDIN rail
Built-in depth45mm
Leakage current typeA
Selective protectionYes
Rated fault current0.03A
Pollution degree2
Width in number of modular spacings3
Frequency50 Hz
Short-circuit breaking capacity (Icw)-kA
Explosion-proofNo
Connectable conductor cross section solid-core1 - 35mm²
Short-time delayed trippingNo
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-5 - 40°C
Additional equipment possibleNo
With interlocking deviceNo
Surge current capacity0.25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

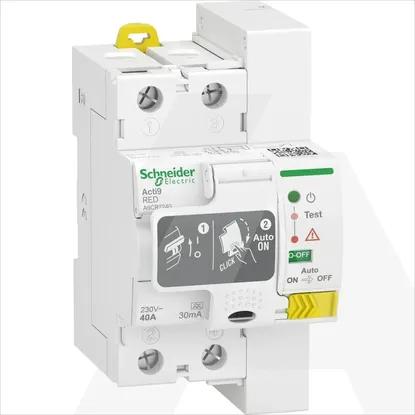

A9CR2240 | ACTI9 RED 2P 40A 30MA a Tip
