Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current25A
Voltage typeAC
Mounting methodDIN rail
Rated voltage230V
Pollution degree2
Width in number of modular spacings3
Surge current capacity0.25kA
Leakage current typeA
Built-in depth45mm
Number of poles2
Rated insulation voltage Ui500V
Short-circuit breaking capacity (Icw)-kA
Rated fault current0.03A
Selective protectionYes
Frequency50 Hz
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 35mm²
Connectable conductor cross section multi-wired1 - 25mm²
Additional equipment possibleNo
With interlocking deviceNo
Ambient temperature during operating-5 - 40°C
Rated impulse withstand voltage Uimp4kV
Explosion-proofNo
Short-time delayed trippingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

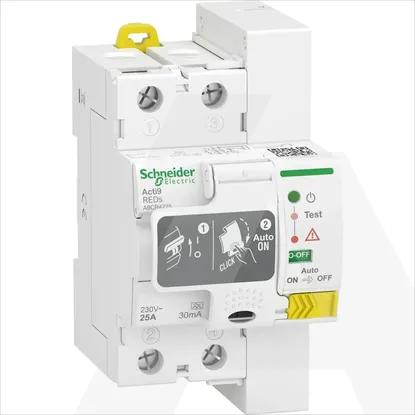

A9CR4225 | ACTI9 RED 2P 25A 30MA a Tip
