Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current40A
Rated voltage230V
Built-in depth45mm
Voltage typeAC
Rated insulation voltage Ui500V
Mounting methodDIN rail
Short-circuit breaking capacity (Icw)-kA
Selective protectionYes
Number of poles2
Pollution degree2
Leakage current typeA
Surge current capacity0.25kA
Rated fault current0.03A
Width in number of modular spacings3
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 35mm²
Frequency50 Hz
Short-time delayed trippingNo
Explosion-proofNo
Ambient temperature during operating-5 - 40°C
Degree of protection (IP)IP20
With interlocking deviceNo
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

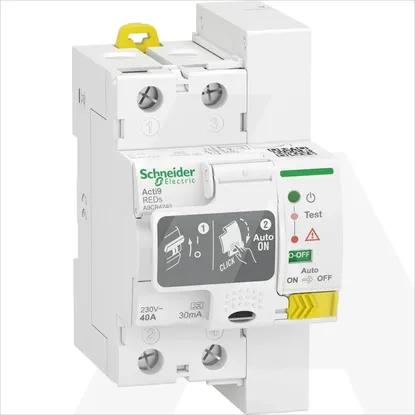

A9CR4240 | ACTI9 REDs 2P 40A 30MA a Tip
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated current
40A
Rated voltage
230V
Built-in depth
45mm
Voltage type
AC
Rated insulation voltage Ui
500V
Mounting method
DIN rail
Short-circuit breaking capacity (Icw)
-kA
Selective protection
Number of poles
2
Pollution degree
2
Leakage current type
A
Surge current capacity
0.25kA
Rated fault current
0.03A
Width in number of modular spacings
3
Connectable conductor cross section multi-wired
1 .. 25mm²
Connectable conductor cross section solid-core
1 .. 35mm²
Frequency
50 Hz
Short-time delayed tripping
Explosion-proof
Ambient temperature during operating
-5 .. 40°C
Degree of protection (IP)
IP20
With interlocking device
Rated impulse withstand voltage Uimp
4kV
Additional equipment possible
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
