Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated voltage230V
Mounting methodDIN rail
Number of poles2
Voltage typeAC
Rated insulation voltage Ui500V
Built-in depth45mm
Rated fault current0.03A
Leakage current typeA
Rated current63A
Selective protectionYes
Connectable conductor cross section multi-wired1 - 25mm²
Additional equipment possibleNo
Ambient temperature during operating-5 - 40°C
Short-circuit breaking capacity (Icw)-kA
Surge current capacity0.25kA
Rated impulse withstand voltage Uimp4kV
Short-time delayed trippingNo
Explosion-proofNo
Width in number of modular spacings3
Pollution degree2
Frequency50 Hz
With interlocking deviceNo
Connectable conductor cross section solid-core1 - 35mm²
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

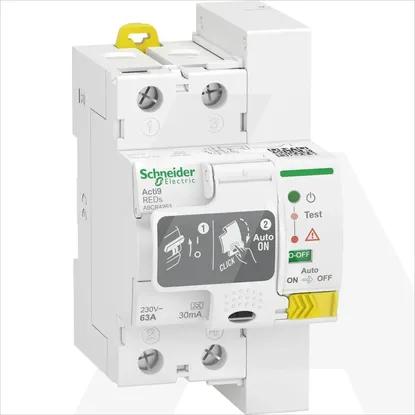

A9CR4263 | ACTI9 REDs 2P 63A 30MA a Tip
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated voltage
230V
Mounting method
DIN rail
Number of poles
2
Voltage type
AC
Rated insulation voltage Ui
500V
Built-in depth
45mm
Rated fault current
0.03A
Leakage current type
A
Rated current
63A
Selective protection
Connectable conductor cross section multi-wired
1 .. 25mm²
Additional equipment possible
Ambient temperature during operating
-5 .. 40°C
Short-circuit breaking capacity (Icw)
-kA
Surge current capacity
0.25kA
Rated impulse withstand voltage Uimp
4kV
Short-time delayed tripping
Explosion-proof
Width in number of modular spacings
3
Pollution degree
2
Frequency
50 Hz
With interlocking device
Connectable conductor cross section solid-core
1 .. 35mm²
Degree of protection (IP)
IP20
