Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current40A
Mounting methodDIN rail
Voltage typeAC
Built-in depth45mm
Rated voltage230V
Leakage current typeA
Selective protectionYes
Rated insulation voltage Ui500V
Surge current capacity0.25kA
Number of poles2
Frequency50 Hz
Degree of protection (IP)IP20
Short-circuit breaking capacity (Icw)-kA
Rated fault current0.3A
Pollution degree2
With interlocking deviceNo
Connectable conductor cross section multi-wired1 - 25mm²
Width in number of modular spacings3
Explosion-proofNo
Short-time delayed trippingNo
Connectable conductor cross section solid-core1 - 35mm²
Additional equipment possibleNo
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-5 - 40°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

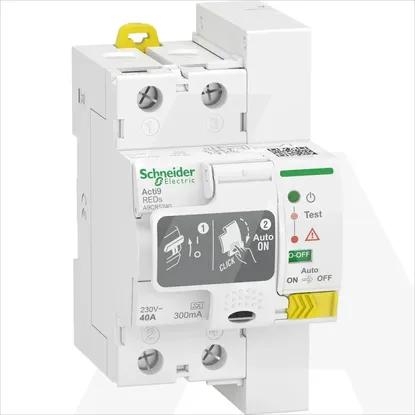

A9CR5240 | ACTI9 REDs 2P 40A 300MA a Tip
