Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth45mm
Mounting methodDIN rail
Voltage typeAC
Rated current63A
Selective protectionYes
Rated insulation voltage Ui500V
Rated voltage230V
Number of poles2
Pollution degree2
Short-circuit breaking capacity (Icw)-kA
Surge current capacity0.25kA
Rated fault current0.3A
Leakage current typeA
Short-time delayed trippingNo
Frequency50 Hz
Connectable conductor cross section solid-core1 - 35mm²
With interlocking deviceNo
Width in number of modular spacings3
Degree of protection (IP)IP20
Explosion-proofNo
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-5 - 40°C
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

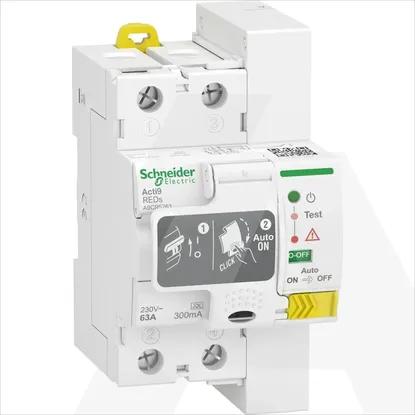

A9CR5263 | ACTI9 REDs 2P 63A 300MA a Tip
