Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of HW-interfaces industrial Ethernet0
Height330mm
Supporting protocol for LONNo
Number of analogue outputs1
Number of digital inputs6
Depth198mm
With control elementYes
Number of HW-interfaces RS-2320
Number of digital outputs1
Number of analogue inputs3
Width180mm
Number of HW-interfaces other1
Number of HW-interfaces USB0
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel0
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-4220
With optical interfaceNo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetYes
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSYes
With PC connectionYes
Mains voltage200 - 240V
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Supporting protocol for SUCONETNo
Supporting protocol for CANYes
Supporting protocol for ASINo
Integrated breaking resistanceYes
Number of phases input3
Mains frequency50/60 Hz
Application in domestic- and commercial area permittedNo
Type of converterU converter
Application in industrial area permittedYes
4-quadrant operation possibleYes
Max. output frequency599Hz
Number of phases output3
Number of interfaces PROFINET0
Max. output at linear load at rated output voltage15kW
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for Foundation FieldbusNo
Relative symmetric net frequency tolerance5%
Max. output at quadratic load at rated output voltage15kW
Supporting protocol for BACnetNo
Relative symmetric net voltage tolerance10%
Nominal output current I2N66A
Degree of protection (NEMA)1
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SafetyBUS pNo
Max. output voltage240V
Supporting protocol for PROFIsafeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

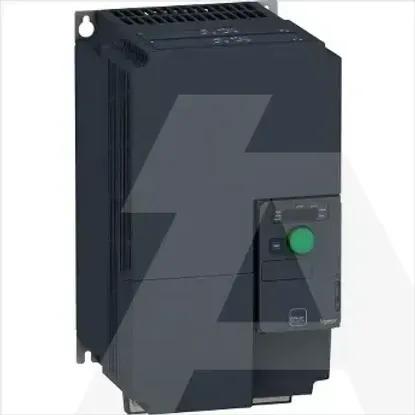

ATV320D15M3C | Frek.pr. 15KW 200V 3PH-ATV320 Kompakt
