Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of HW-interfaces industrial Ethernet0
With control elementYes
Number of digital outputs1
Width180mm
Supporting protocol for LONNo
Number of HW-interfaces RS-2320
Number of analogue inputs3
Depth198mm
Number of HW-interfaces RS-4220
Height330mm
Number of analogue outputs1
Number of digital inputs6
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel0
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Integrated breaking resistanceYes
With optical interfaceNo
Supporting protocol for PROFIBUSYes
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsYes
Degree of protection (IP)IP20
Supporting protocol for TCP/IPYes
Mains voltage525 - 600V
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Supporting protocol for INTERBUS-SafetyNo
With PC connectionYes
Supporting protocol for CANYes
Supporting protocol for DeviceNetYes
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Number of interfaces PROFINET0
Number of phases input3
Number of HW-interfaces other1
4-quadrant operation possibleYes
Number of phases output3
Supporting protocol for ASINo
Type of converterU converter
Max. output at linear load at rated output voltage15kW
Application in industrial area permittedYes
Relative symmetric net frequency tolerance5%
Supporting protocol for SafetyBUS pNo
Application in domestic- and commercial area permittedNo
Max. output at quadratic load at rated output voltage15kW
Nominal output current I2N22A
Supporting protocol for EtherNet/IPYes
Degree of protection (NEMA)1
Supporting protocol for PROFINET CBANo
Max. output frequency599Hz
Relative symmetric net voltage tolerance10%
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for BACnetNo
Max. output voltage600V
Supporting protocol for AS-Interface Safety at WorkNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

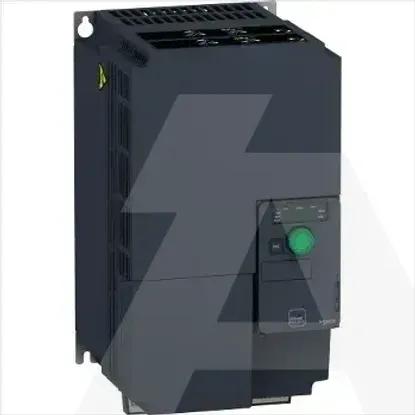

ATV320D15S6C | Frek.pr. 15KW 600V 3PH-ATV320 Kompakt
