Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
With control elementYes
Number of digital inputs7
Number of HW-interfaces RS-2320
Number of analogue outputs1
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs3
Width250mm
Number of digital outputs3
Supporting protocol for LONNo
Depth182mm
Height340mm
Supporting protocol for ASINo
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4220
With optical interfaceNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces RS-4851
Number of HW-interfaces other1
Supporting protocol for PROFIBUSYes
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUSNo
Supporting protocol for DeviceNetYes
Supporting protocol for KNXNo
Degree of protection (IP)IP66
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Supporting protocol for CANYes
Mains frequency50/60 Hz
Type of converterU converter
Application in industrial area permittedYes
4-quadrant operation possibleYes
Number of phases output3
Supporting protocol for INTERBUS-SafetyNo
Max. output frequency599Hz
Supporting protocol for SERCOSNo
Mains voltage200 - 240V
Number of phases input1
Application in domestic- and commercial area permittedNo
Max. output at linear load at rated output voltage0.18kW
Number of interfaces PROFINET0
Integrated breaking resistanceYes
With PC connectionYes
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Max. output at quadratic load at rated output voltage0.18kW
Degree of protection (NEMA)4X
Relative symmetric net voltage tolerance10%
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Max. output voltage240V
Nominal output current I2N1.5A
Supporting protocol for BACnetNo
Relative symmetric net frequency tolerance5%
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

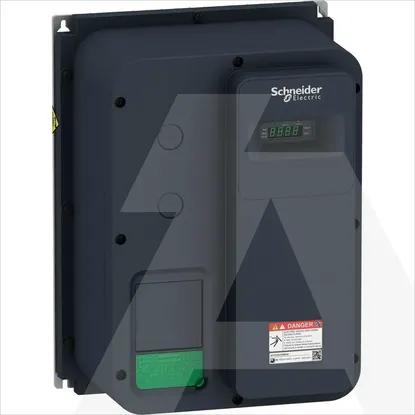

ATV320U02M2W | Frek.pr. 0.18KW 200V 1PH NO Vario IP65
