Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Height143mm
Width105mm
Number of digital inputs6
With control elementYes
Number of analogue inputs3
Number of analogue outputs1
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Supporting protocol for LONNo
With optical interfaceNo
Number of HW-interfaces RS-4851
Number of HW-interfaces other1
Number of HW-interfaces RS-2320
Depth138mm
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for CANYes
Number of digital outputs1
Supporting protocol for PROFIBUSYes
Supporting protocol for DeviceNetYes
Supporting protocol for ModbusYes
Number of interfaces PROFINET0
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SUCONETNo
4-quadrant operation possibleYes
Degree of protection (IP)IP20
With PC connectionYes
Mains frequency50/60 Hz
Mains voltage200 - 240V
Type of converterU converter
Number of phases output3
Supporting protocol for other bus systemsYes
Number of phases input3
Application in domestic- and commercial area permittedNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for DeviceNet SafetyNo
Max. output frequency599Hz
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SERCOSNo
Relative symmetric net voltage tolerance10%
Application in industrial area permittedYes
Supporting protocol for Foundation FieldbusNo
Relative symmetric net frequency tolerance5%
Integrated breaking resistanceYes
Max. output at linear load at rated output voltage1.1kW
Max. output at quadratic load at rated output voltage1.1kW
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Nominal output current I2N6.9A
Supporting protocol for PROFINET IOYes
Max. output voltage240V
Supporting protocol for BACnetNo
Degree of protection (NEMA)1
Supporting protocol for PROFINET CBANo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

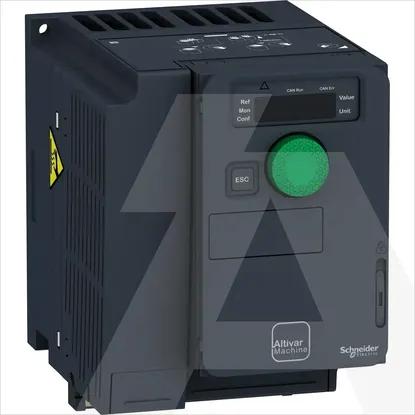

ATV320U11M3C | Frek.pr. 1.1KW 200V 3PH-ATV320 Kompakt
