Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth158mm
Height184mm
Number of digital outputs1
Width140mm
Number of HW-interfaces industrial Ethernet0
With control elementYes
Number of analogue outputs1
Number of HW-interfaces RS-4220
Number of HW-interfaces other1
Supporting protocol for LONNo
Number of HW-interfaces USB0
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPYes
Number of HW-interfaces serial TTY0
Number of digital inputs6
Supporting protocol for PROFIBUSYes
Number of HW-interfaces parallel0
Number of analogue inputs3
Supporting protocol for ASINo
With optical interfaceNo
Number of HW-interfaces RS-4851
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Mains voltage200 - 240V
Number of interfaces PROFINET0
Supporting protocol for DeviceNetYes
4-quadrant operation possibleYes
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Type of converterU converter
Number of phases input3
Mains frequency50/60 Hz
Integrated breaking resistanceYes
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Application in domestic- and commercial area permittedNo
Supporting protocol for INTERBUS-SafetyNo
Max. output frequency599Hz
Max. output at quadratic load at rated output voltage4kW
Max. output at linear load at rated output voltage4kW
Number of phases output3
Application in industrial area permittedYes
Supporting protocol for SERCOSNo
With PC connectionYes
Supporting protocol for SUCONETNo
Degree of protection (IP)IP20
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Max. output voltage240V
Supporting protocol for PROFINET IOYes
Nominal output current I2N17.5A
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPYes
Relative symmetric net voltage tolerance10%
Degree of protection (NEMA)1
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

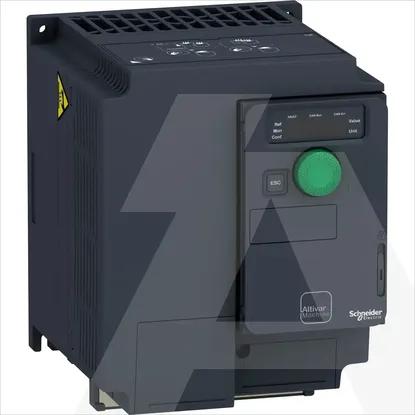

ATV320U40M3C | Frek.pr. 4KW 200V 3PH-ATV320 Kompakt
