Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Depth225mm
Number of digital inputs6
Number of digital outputs0
Width155mm
With control elementYes
Height345mm
Number of HW-interfaces RS-2320
Number of analogue inputs3
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-4220
Number of analogue outputs2
Number of HW-interfaces industrial Ethernet1
Supporting protocol for LONNo
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Number of HW-interfaces USB0
With optical interfaceNo
Number of HW-interfaces other0
Supporting protocol for PROFIBUSYes
Supporting protocol for DeviceNetYes
Supporting protocol for other bus systemsNo
Supporting protocol for CANNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
With PC connectionNo
Supporting protocol for INTERBUS-SafetyNo
Type of converterU converter
Number of interfaces PROFINET0
Mains frequency50/60 Hz
Supporting protocol for SERCOSNo
4-quadrant operation possibleYes
Integrated breaking resistanceNo
Max. output frequency500Hz
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IOYes
Relative symmetric net frequency tolerance5%
Relative symmetric net voltage tolerance10%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Max. output voltage480V
Max. output at quadratic load at rated output voltage11kW
Supporting protocol for BACnetNo
Degree of protection (IP)IP20
Mains voltage380 - 480V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage11kW
Nominal output current I2N23.5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

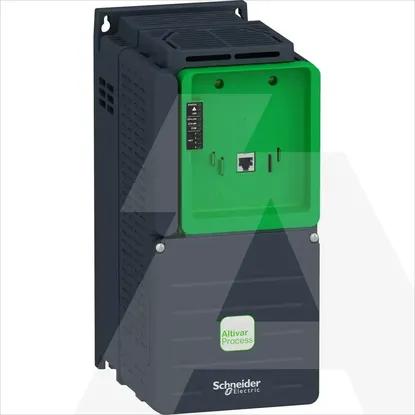

ATV630D11N4Z | FR Pret. IP21 11KW 400V Integracijski

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • SCHNEIDER

Technical specifications

Depth

225mm

Number of digital inputs

6

Number of digital outputs

0

Width

155mm

With control element

Height

345mm

Number of HW-interfaces RS-232

0

Number of analogue inputs

3

Number of HW-interfaces RS-485

1

Number of HW-interfaces RS-422

0

Number of analogue outputs

2

Number of HW-interfaces industrial Ethernet

1

Supporting protocol for LON

Number of HW-interfaces parallel

0

Supporting protocol for ASI

Number of HW-interfaces USB

0

With optical interface

Number of HW-interfaces other

0

Supporting protocol for PROFIBUS

Supporting protocol for DeviceNet

Supporting protocol for other bus systems

Supporting protocol for CAN

Supporting protocol for TCP/IP

Number of HW-interfaces serial TTY

0

Supporting protocol for INTERBUS

Supporting protocol for SUCONET

Supporting protocol for KNX

Supporting protocol for Modbus

Supporting protocol for Data-Highway

With PC connection

Supporting protocol for INTERBUS-Safety

Type of converter

U converter

Number of interfaces PROFINET

0

Mains frequency

50/60 Hz

Supporting protocol for SERCOS

4-quadrant operation possible

Integrated breaking resistance

Max. output frequency

500Hz

Application in domestic- and commercial area permitted

Application in industrial area permitted

Supporting protocol for DeviceNet Safety

Supporting protocol for PROFIsafe

Supporting protocol for EtherNet/IP

Supporting protocol for PROFINET IO

Relative symmetric net frequency tolerance

5%

Relative symmetric net voltage tolerance

10%

Supporting protocol for Foundation Fieldbus

Supporting protocol for AS-Interface Safety at Work

Supporting protocol for PROFINET CBA

Supporting protocol for SafetyBUS p

Max. output voltage

480V

Max. output at quadratic load at rated output voltage

11kW

Supporting protocol for BACnet

Degree of protection (IP)

IP20

Mains voltage

380 .. 480V

Number of phases output

3

Number of phases input

3

Max. output at linear load at rated output voltage

11kW

Nominal output current I2N

23.5A
