Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width195mm
Height480mm
Depth225.5mm
With control elementYes
Number of digital outputs0
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces other0
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of digital inputs6
Supporting protocol for LONNo
With optical interfaceNo
Supporting protocol for PROFIBUSYes
Number of HW-interfaces parallel0
Number of HW-interfaces USB0
Number of analogue outputs2
Supporting protocol for ASINo
Number of analogue inputs3
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPYes
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for CANNo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetYes
Supporting protocol for SERCOSNo
Supporting protocol for other bus systemsNo
Type of converterOther
Mains frequency50/60 Hz
Max. output frequency500Hz
Max. output at quadratic load at rated output voltage22kW
Mains voltage380 - 480V
Integrated breaking resistanceNo
Application in domestic- and commercial area permittedYes
With PC connectionNo
Max. output at linear load at rated output voltage22kW
Number of phases input3
Number of phases output3
Degree of protection (IP)IP20
Number of interfaces PROFINET0
Supporting protocol for INTERBUS-SafetyNo
4-quadrant operation possibleYes
Application in industrial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net voltage tolerance10%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Nominal output current I2N46.3A
Max. output voltage480V
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

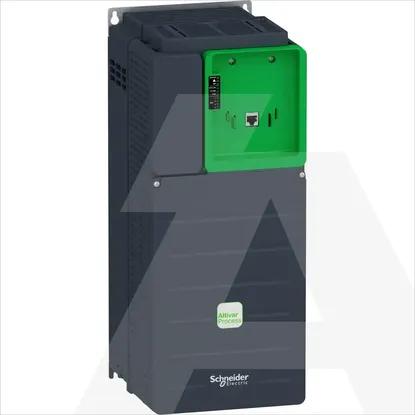

ATV630D22N4Z | FR Pret. IP21 22KW 400V Integracijski
