Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of HW-interfaces RS-4851
Width210mm
Number of digital outputs0
Number of HW-interfaces parallel0
Depth262mm
Number of HW-interfaces USB0
Number of HW-interfaces RS-2320
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet1
Supporting protocol for LONNo
Number of digital inputs6
Number of analogue inputs3
Height597mm
With control elementYes
Number of analogue outputs2
Supporting protocol for PROFIBUSYes
Number of HW-interfaces other0
Supporting protocol for TCP/IPYes
With optical interfaceNo
Supporting protocol for ASINo
Number of HW-interfaces RS-4220
Supporting protocol for SUCONETNo
With PC connectionNo
Supporting protocol for ModbusYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for other bus systemsNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetYes
Number of interfaces PROFINET0
Number of phases output3
Number of phases input3
Application in industrial area permittedYes
Mains voltage380 - 480V
Mains frequency50/60 Hz
Type of converterU converter
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
4-quadrant operation possibleYes
Integrated breaking resistanceNo
Supporting protocol for CANNo
Max. output frequency500Hz
Max. output at linear load at rated output voltage45kW
Max. output at quadratic load at rated output voltage45kW
Application in domestic- and commercial area permittedYes
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Supporting protocol for AS-Interface Safety at WorkNo
Nominal output current I2N88A
Supporting protocol for EtherNet/IPYes
Max. output voltage480V
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for BACnetNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Relative symmetric net voltage tolerance10%
Supporting protocol for SafetyBUS pNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

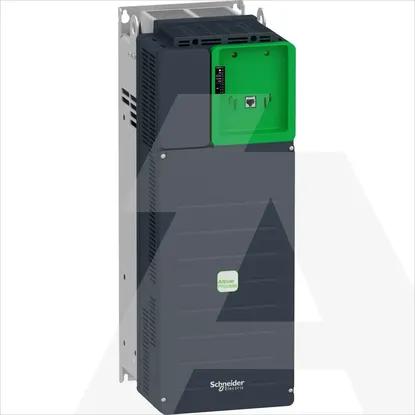

ATV630D45N4Z | FR Pret. IP21 45KW 400V Integracijski
