Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
With control elementYes
Depth307mm
Width265mm
Height748mm
Number of digital inputs6
Number of HW-interfaces RS-2320
Number of analogue outputs2
Supporting protocol for LONNo
Supporting protocol for ASINo
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces serial TTY0
Number of digital outputs0
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Number of HW-interfaces RS-4851
With optical interfaceNo
Number of HW-interfaces other0
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Number of analogue inputs3
Supporting protocol for PROFIBUSYes
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Number of HW-interfaces parallel0
Supporting protocol for TCP/IPYes
Supporting protocol for DeviceNetYes
Supporting protocol for other bus systemsNo
Supporting protocol for SUCONETNo
Supporting protocol for SERCOSNo
With PC connectionNo
Integrated breaking resistanceNo
Application in domestic- and commercial area permittedYes
Degree of protection (IP)IP20
Relative symmetric net frequency tolerance5%
4-quadrant operation possibleYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Max. output at linear load at rated output voltage75kW
Max. output at quadratic load at rated output voltage75kW
Application in industrial area permittedYes
Supporting protocol for Foundation FieldbusNo
Number of phases input3
Mains voltage380 - 480V
Number of phases output3
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for EtherNet/IPYes
Mains frequency50/60 Hz
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Number of interfaces PROFINET0
Type of converterU converter
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Max. output voltage480V
Nominal output current I2N145A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

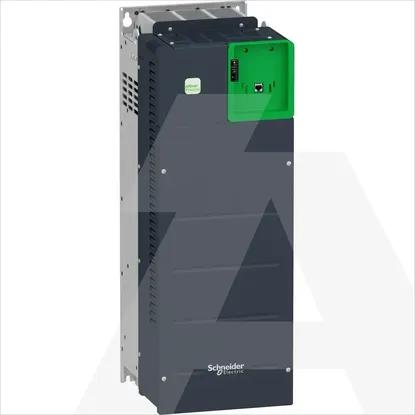

ATV630D75N4Z | FR Pret. IP21 75KW 400V Integracijski
