Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
With control elementYes
Height285mm
Width130mm
Number of digital outputs0
Depth196mm
Number of digital inputs6
Number of analogue inputs3
Number of HW-interfaces USB0
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel0
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Supporting protocol for PROFIBUSYes
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet1
Supporting protocol for TCP/IPYes
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Number of HW-interfaces RS-2320
With optical interfaceNo
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetYes
Supporting protocol for CANNo
Number of HW-interfaces other0
Degree of protection (IP)IP20
Supporting protocol for other bus systemsNo
Supporting protocol for SUCONETNo
Number of analogue outputs2
With PC connectionNo
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Type of converterU converter
Relative symmetric net voltage tolerance10%
Number of interfaces PROFINET0
Integrated breaking resistanceNo
Number of phases input3
Supporting protocol for AS-Interface Safety at WorkNo
Max. output at linear load at rated output voltage0.75kW
Application in industrial area permittedYes
Number of phases output3
4-quadrant operation possibleYes
Supporting protocol for EtherNet/IPYes
Max. output frequency500Hz
Relative symmetric net frequency tolerance5%
Max. output at quadratic load at rated output voltage0.75kW
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Application in domestic- and commercial area permittedYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Mains voltage380 - 480V
Max. output voltage480V
Nominal output current I2N2.2A
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

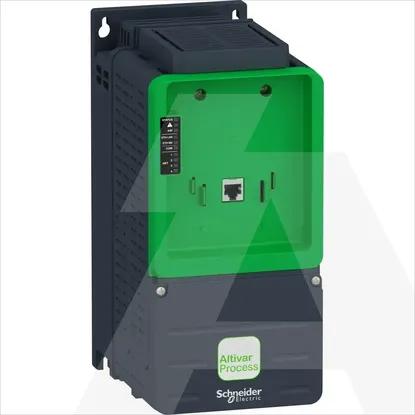

ATV630U07N4Z | FR Pret. IP21 0,75KW 400V Integracijski
