Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital inputs8
With control elementYes
Number of digital outputs1
Depth307mm
Width265mm
Height748mm
Number of HW-interfaces RS-2320
Number of HW-interfaces serial TTY0
Number of analogue outputs2
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4853
Number of analogue inputs3
Supporting protocol for KNXNo
Number of HW-interfaces USB0
Supporting protocol for CANYes
With optical interfaceNo
Supporting protocol for PROFIBUSYes
Supporting protocol for TCP/IPNo
Supporting protocol for SUCONETNo
Number of HW-interfaces parallel0
Number of HW-interfaces other0
With PC connectionNo
Supporting protocol for ASINo
Supporting protocol for ModbusNo
Degree of protection (IP)IP20
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Supporting protocol for DeviceNetYes
Supporting protocol for other bus systemsYes
Type of converterU converter
Supporting protocol for INTERBUS-SafetyNo
Number of phases output3
Supporting protocol for SERCOSNo
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Mains voltage380 - 480V
Number of interfaces PROFINET0
Number of phases input3
Integrated breaking resistanceNo
Application in industrial area permittedYes
Relative symmetric net voltage tolerance10%
Max. output at linear load at rated output voltage75kW
Application in domestic- and commercial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Max. output frequency500Hz
Max. output at quadratic load at rated output voltage75kW
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IOYes
Nominal output current I2N145A
Max. output voltage480V
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

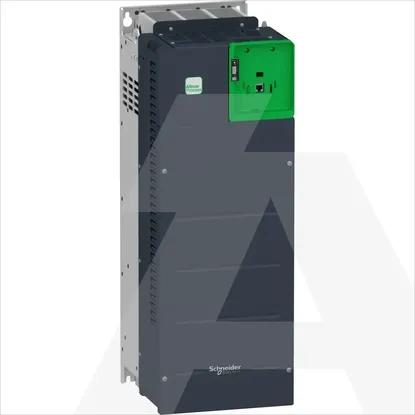

ATV930D75N4Z | Frek. Pret. IP21 75KW 400v/480v bez dis
