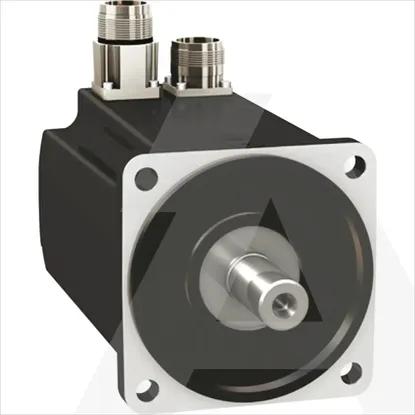

BMH1002P01A1A | Motor BMH IEC 100MM 5,5 NM
Code: 1938733
ManufacturerSchneider Electric
Catalog numberBMH1002P01A1A
TypeBMH1002P01A1A
CategoryElectric motor
EAN code3606485200323
Details
- •Gate operators, pumps and ventilators
- •Electric motor
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC/DC
Construction typeOther
Number of phases3
Operating temperature0 - 20°C
Number of poles10
Rated frequency50 - 60Hz
Material housingOther
Duty cycleOther
Starting current ratio0
Breakdown torque ratio0
Frame size according to IEC0mm
Full-load efficiency0%
Voltage anti-condensation heater0V
Starting torque ratio0
Shaft end typeOther
Overload capabilityNo
Output power anti-condensation heater0W
With positive temperature coefficient resistor (PTC)No
Cooling methodOther
With resistance temperature detector (RTD)No
Vacuum pressure impregnation (VPI)Other
Suitable for frequency controlNo
With anti-condensationNo
Insulation class according to IECOther
Power factor-
BearingOther
Motor efficiency classOther
Nominal torque3.9Nm
Intrinsic safety (IS)None
ModelRotary current synchronous motor
Rated current6A
Rated voltage480V
Rated rotational speed at rated frequency6000Rpm
Rated performance at rated frequency1.6kW
Degree of protection (IP)IP54
