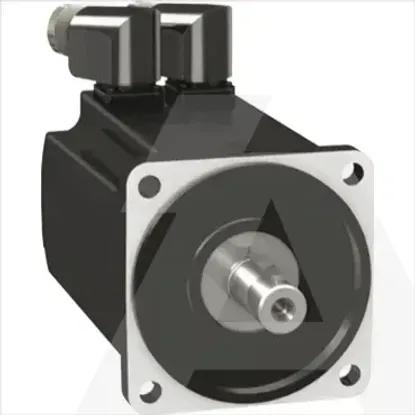

BMH1003P16A2A | BMH1003 Servo Motor
Code: 1938734
ManufacturerSchneider Electric
Catalog numberBMH1003P16A2A
TypeBMH1003P16A2A
CategoryElectric motor
EAN code3606485196596
Details
- •Gate operators, pumps and ventilators
- •Electric motor
- •1 KOM
- •SCHNEIDER
Technical specifications
Operating temperature0 - 20°C
Construction typeOther
Rated frequency50 - 60Hz
Duty cycleOther
Material housingOther
Number of phases3
Voltage typeAC/DC
Number of poles10
Starting current ratio0
Full-load efficiency-%
Frame size according to IEC-mm
Voltage anti-condensation heater-V
Breakdown torque ratio0
With resistance temperature detector (RTD)No
Output power anti-condensation heater-W
Starting torque ratio0
Intrinsic safety (IS)None
With positive temperature coefficient resistor (PTC)No
Overload capabilityNo
Motor efficiency classOther
Nominal torque6.2Nm
With anti-condensationNo
BearingOther
Cooling methodOther
Suitable for frequency controlNo
Shaft end typeOther
Vacuum pressure impregnation (VPI)Other
Insulation class according to IECOther
Power factor-
ModelRotary current synchronous motor
Rated current10A
Rated voltage480V
Rated rotational speed at rated frequency6000Rpm
Rated performance at rated frequency2.7kW
Degree of protection (IP)IP54
