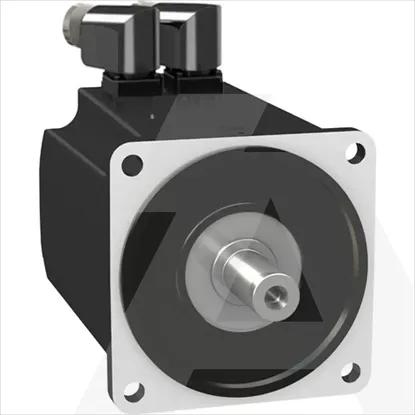

BMH1401P37F2A | BMH Servo Motor 1401
Code: 1938735
ManufacturerSchneider Electric
Catalog numberBMH1401P37F2A
TypeBMH1401P37F2A
CategoryElectric motor
EAN code3606485198705
Details
- •Gate operators, pumps and ventilators
- •Electric motor
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated frequency50 - 60Hz
Operating temperature0 - 20°C
Number of poles10
Construction typeOther
Duty cycleOther
Material housingOther
Voltage typeAC/DC
Frame size according to IEC0mm
Number of phases3
Output power anti-condensation heater0W
Overload capabilityNo
Full-load efficiency0%
With positive temperature coefficient resistor (PTC)No
With resistance temperature detector (RTD)No
Vacuum pressure impregnation (VPI)Other
Starting current ratio0
Cooling methodOther
Breakdown torque ratio0
Suitable for frequency controlNo
BearingOther
Insulation class according to IECOther
Motor efficiency classOther
With anti-condensationNo
Shaft end typeOther
Nominal torque6.9Nm
Starting torque ratio0
Voltage anti-condensation heater0V
Intrinsic safety (IS)None
Power factor-
ModelRotary current synchronous motor
Rated current10A
Rated voltage480V
Rated rotational speed at rated frequency4000Rpm
Rated performance at rated frequency1.45kW
Degree of protection (IP)IP65
