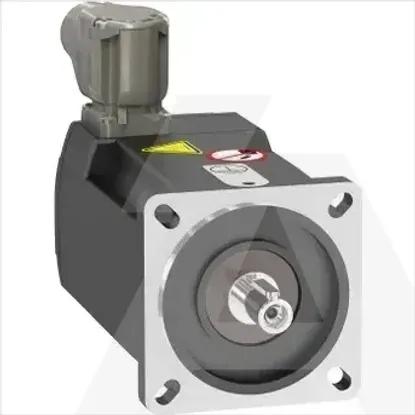

BMP0701F3NA2A | Sinkroni PM Motor 480VAC 0,37KW IP65
Code: 1938736
ManufacturerSchneider Electric
Catalog numberBMP0701F3NA2A
TypeBMP0701F3NA2A
CategoryElectric motor
EAN code3606480564383
Details
- •Gate operators, pumps and ventilators
- •Electric motor
- •1 KOM
- •SCHNEIDER
Technical specifications
Construction typeOther
Number of poles0
Rated frequency50 - 60Hz
Operating temperature0 - 40°C
Material housingOther
Voltage typeAC/DC
Number of phases3
Duty cycleOther
Starting current ratio0
Full-load efficiency-%
Starting torque ratio0
Frame size according to IEC70mm
Breakdown torque ratio0
Overload capabilityNo
Voltage anti-condensation heater-V
Output power anti-condensation heater-W
With resistance temperature detector (RTD)No
Cooling methodOther
With anti-condensationNo
Vacuum pressure impregnation (VPI)Other
Power factor-
Suitable for frequency controlNo
Motor efficiency classOther
BearingOther
Insulation class according to IECOther
Nominal torque0.9Nm
With positive temperature coefficient resistor (PTC)No
Shaft end typeOther
Intrinsic safety (IS)None
ModelRotary current synchronous motor
Rated current2.6A
Rated voltage480V
Rated rotational speed at rated frequency1000Rpm
Rated performance at rated frequency0.26kW
Degree of protection (IP)Other
