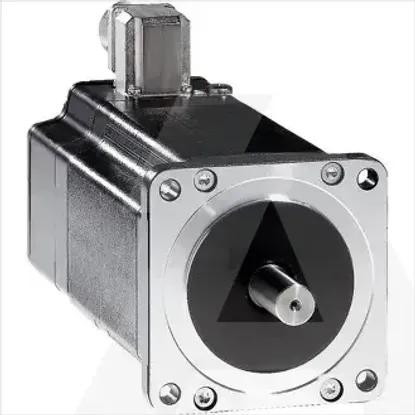

BRS39AH360ABA | Steper Motor BRS
Code: 1938753
ManufacturerSchneider Electric
Catalog numberBRS39AH360ABA
TypeBRS39AH360ABA
CategoryElectric motor
EAN code3606485152820
Details
- •Gate operators, pumps and ventilators
- •Electric motor
- •1 KOM
- •SCHNEIDER
Technical specifications
Intrinsic safety (IS)None
Duty cycleOther
Output power anti-condensation heater-W
Full-load efficiency-%
Breakdown torque ratio0
Frame size according to IEC-mm
Number of poles0
Material housingOther
Number of phases3
Construction typeOther
Rated frequency50 - 60Hz
Starting current ratio0
Starting torque ratio0
With positive temperature coefficient resistor (PTC)No
Operating temperature0 - 40°C
Voltage anti-condensation heater-V
With resistance temperature detector (RTD)No
Overload capabilityNo
Voltage typeAC/DC
Nominal torque0.9Nm
With anti-condensationNo
Suitable for frequency controlNo
Vacuum pressure impregnation (VPI)Other
Power factor-
Motor efficiency classOther
BearingOther
Insulation class according to IECOther
Shaft end typeOther
Cooling methodOther
ModelRotary current synchronous motor
Rated current2.6A
Rated voltage480V
Rated rotational speed at rated frequency1500Rpm
Rated performance at rated frequency0.26kW
Degree of protection (IP)Other
