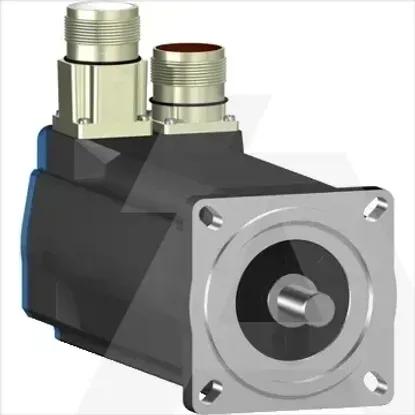

BSH0703P11A2A | BSH AC Servo Motor 3,1 Nm 3000 o/min
Code: 1938760
ManufacturerSchneider Electric
Catalog numberBSH0703P11A2A
TypeBSH0703P11A2A
CategoryElectric motor
EAN code3389118137219
Details
- •Gate operators, pumps and ventilators
- •Electric motor
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Operating temperature0 - 20°C
Frame size according to IEC0mm
Number of phases3
Starting current ratio0
Duty cycleOther
Rated frequency50 - 60Hz
Construction typeOther
Number of poles6
Full-load efficiency0%
Material housingOther
Starting torque ratio0
With positive temperature coefficient resistor (PTC)No
Shaft end typeParallel key
Vacuum pressure impregnation (VPI)Other
Breakdown torque ratio0
Motor efficiency classOther
Output power anti-condensation heater0W
Overload capabilityNo
Cooling methodOther
With resistance temperature detector (RTD)No
Intrinsic safety (IS)None
Voltage anti-condensation heater0V
Suitable for frequency controlNo
Power factor-
With anti-condensationNo
Nominal torque2.4Nm
BearingOther
Insulation class according to IECOther
ModelRotary current synchronous motor
Rated current0A
Rated voltage480V
Rated rotational speed at rated frequency6000Rpm
Rated performance at rated frequency0.75kW
Degree of protection (IP)IP50
