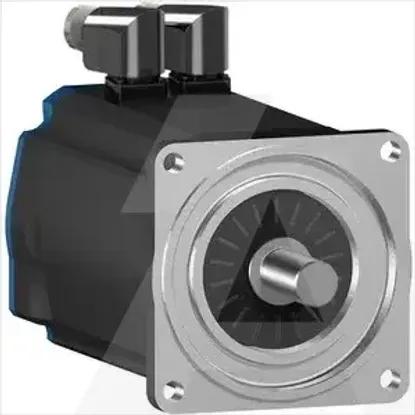

BSH1001P32F2A | BSH Servo Motor 1001
Code: 1938761
ManufacturerSchneider Electric
Catalog numberBSH1001P32F2A
TypeElectric motor
CategoryElectric motor
EAN code3389118138377
Details
- •Gate operators, pumps and ventilators
- •Electric motor
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Number of phases3
Energy efficiency classOther
Rated frequency- - undefinedHz
Operating temperature20 - 20°C
Duty cycleOther
Frame size according to IEC0mm
Construction typeOther
Number of poles8
Starting torque ratio0
Starting current ratio0
Full-load efficiency0%
Breakdown torque ratio0
Shaft end typeParallel key
With anti-condensationNo
Voltage anti-condensation heater0V
Nominal torque3Nm
Intrinsic safety (IS)None
Output power anti-condensation heater0W
Suitable for frequency controlNo
With resistance temperature detector (RTD)No
Power factor-
Insulation class according to IECOther
BearingOther
Cooling methodAir
Overload capabilityNo
Vacuum pressure impregnation (VPI)Other
With positive temperature coefficient resistor (PTC)No
ModelRotary current synchronous motor
Rated current0A
Rated voltage480V
Rated rotational speed at rated frequency5000Rpm
Rated performance at rated frequency1.3kW
Degree of protection (IP)IP65
