Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of command positions5
Depth165mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Suitable for emergency stopYes
Rated operation current Ie12A
With transformerNo
Width175mm
Rated operation power at AC-3, 400 V5.5kW
Height165mm
Rated control supply voltage Us at AC 60HZ220 - 220V
Number of indicator lights0
Rail mounting possibleNo
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Supporting protocol for LONNo
Supporting protocol for other bus systemsNo
Supporting protocol for ModbusNo
Supporting protocol for Data-HighwayNo
Supporting protocol for CANNo
Overload release current setting9 - 14A
Supporting protocol for SUCONETNo
Degree of protection (IP)IP55
External reset possibleNo
Supporting protocol for INTERBUSNo
Rated control supply voltage Us at AC 50HZ220 - 220V
Supporting protocol for PROFIBUSNo
Release classCLASS 10
Rated control supply voltage Us at DC- - -V
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for DeviceNetNo
Supporting protocol for SERCOSNo
Type of electrical connection of main circuitScrew connection
With short-circuit releaseYes
With fuseNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET CBANo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Type of electrical connection for auxiliary- and control current circuitScrew connection
Rated power, 460 V, 60 Hz, 3-phase5.5kW
Type of motor starterDirect online starter (DOL)
Supporting protocol for SafetyBUS pNo
Supporting protocol for EtherNet/IPNo
Rated conditional short-circuit current, type 2, 400 V-A
Supporting protocol for PROFINET IONo
Rated operation power at AC-3, 230 V, 3-phase3kW
Temperature compensated overload protectionYes
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated operation current at AC-3, 400 V12A
Voltage type for actuatingAC
Supporting protocol for PROFIsafeNo
Rated conditional short-circuit current, type 2, 230 V-A
Rated conditional short-circuit current, type 1, 480 Y/277 V6000A
Ambient temperature, upper operating limit40°C
Rated conditional short-circuit current, type 1, 600 Y/347 V3000A
Coordination class according to IEC 60947-4-3Class 1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

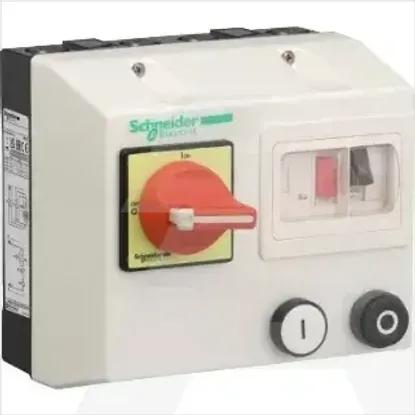

LG1D122M716 | Pokretac Mot. u Kucistu
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor starter/Motor starter combination
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Number of command positions
5
Depth
165mm
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Suitable for emergency stop
Rated operation current Ie
12A
With transformer
Width
175mm
Rated operation power at AC-3, 400 V
5.5kW
Height
165mm
Rated control supply voltage Us at AC 60HZ
220 .. 220V
Number of indicator lights
0
Rail mounting possible
Supporting protocol for ASI
Supporting protocol for TCP/IP
Supporting protocol for LON
Supporting protocol for other bus systems
Supporting protocol for Modbus
Supporting protocol for Data-Highway
Supporting protocol for CAN
Overload release current setting
9 .. 14A
Supporting protocol for SUCONET
Degree of protection (IP)
IP55
External reset possible
Supporting protocol for INTERBUS
Rated control supply voltage Us at AC 50HZ
220 .. 220V
Supporting protocol for PROFIBUS
Release class
CLASS 10
Rated control supply voltage Us at DC
- .. -V
Supporting protocol for INTERBUS-Safety
Supporting protocol for DeviceNet
Supporting protocol for SERCOS
Type of electrical connection of main circuit
Screw connection
With short-circuit release
With fuse
Supporting protocol for DeviceNet Safety
Supporting protocol for PROFINET CBA
Supporting protocol for AS-Interface Safety at Work
Supporting protocol for Foundation Fieldbus
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rated power, 460 V, 60 Hz, 3-phase
5.5kW
Type of motor starter
Direct online starter (DOL)
Supporting protocol for SafetyBUS p
Supporting protocol for EtherNet/IP
Rated conditional short-circuit current, type 2, 400 V
-A
Supporting protocol for PROFINET IO
Rated operation power at AC-3, 230 V, 3-phase
3kW
Temperature compensated overload protection
Rated power, 575 V, 60 Hz, 3-phase
-kW
Rated operation current at AC-3, 400 V
12A
Voltage type for actuating
AC
Supporting protocol for PROFIsafe
Rated conditional short-circuit current, type 2, 230 V
-A
Rated conditional short-circuit current, type 1, 480 Y/277 V
6000A
Ambient temperature, upper operating limit
40°C
Rated conditional short-circuit current, type 1, 600 Y/347 V
3000A
Coordination class according to IEC 60947-4-3
Class 1
