Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth177mm
Suitable for emergency stopYes
Supporting protocol for TCP/IPNo
Number of command positions5
Width175mm
Rated operation current Ie9A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Supporting protocol for LONNo
Number of indicator lights0
Overload release current setting6 - 10A
Rated operation power at AC-3, 400 V4kW
With transformerNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Height165mm
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
With fuseNo
External reset possibleNo
Supporting protocol for ModbusNo
Supporting protocol for PROFINET IONo
Degree of protection (IP)IP55
Supporting protocol for Data-HighwayNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPNo
Rail mounting possibleNo
Supporting protocol for INTERBUS-SafetyNo
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 50HZ380 - 400V
Type of electrical connection for auxiliary- and control current circuitScrew connection
Release classCLASS 10
Rated control supply voltage Us at DC- - -V
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SERCOSNo
Rated control supply voltage Us at AC 60HZ380 - 400V
With short-circuit releaseYes
Supporting protocol for PROFIsafeNo
Supporting protocol for SUCONETNo
Voltage type for actuatingAC
Coordination class according to IEC 60947-4-3Class 1
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated operation power at AC-3, 230 V, 3-phase1.5kW
Rated power, 460 V, 60 Hz, 3-phase4kW
Ambient temperature, upper operating limit40°C
Rated conditional short-circuit current, type 2, 230 V-A
Rated operation current at AC-3, 400 V9A
Rated conditional short-circuit current, type 1, 480 Y/277 V10000A
Rated conditional short-circuit current, type 1, 600 Y/347 V-A
Type of motor starterDirect online starter (DOL)
Temperature compensated overload protectionYes
Rated conditional short-circuit current, type 2, 400 V-A
Supporting protocol for SafetyBUS pNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

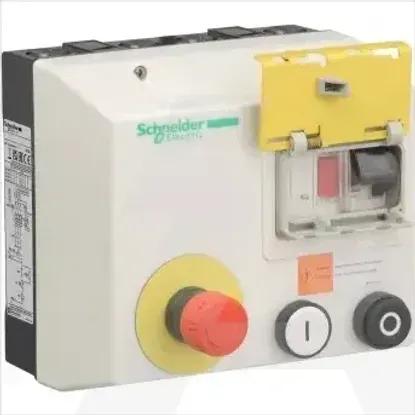

LG7K09Q714 | Pokretac Mot. u Kucistu
