Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Explosion-proofNo
Current limiting class3
Rated current2A
Number of protected poles1
Over voltage category4
Release characteristicB
Voltage typeAC/DC
Degree of protection (IP)IP20
Pollution degree3
Rated insulation voltage Ui500V
Width in number of modular spacings2
Frequency50 - 60Hz
Rated voltage277V
Built-in depth44mm
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired1 - 16mm²
Ambient temperature during operating-30 - 70°C
Additional equipment possibleYes
Flush-mounted installationNo
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Number of poles (total)1
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V3kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

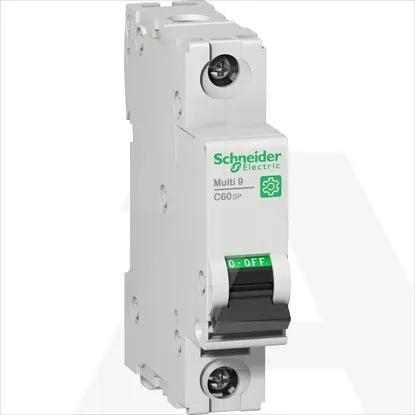

M9F21102 | MULTI9 C60SP 1P B 2A 10KA 277V UL1077
