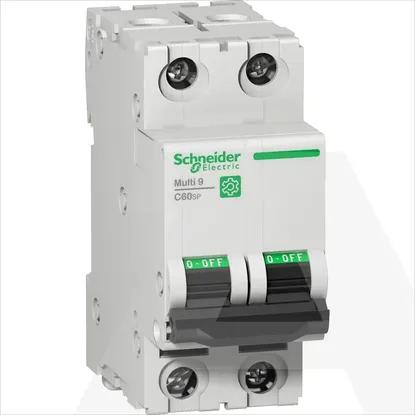

M9F22210 | MULTI9 C60SP 2P C 10A 10KA 480/277UL1077
Code: 1941470
ManufacturerSchneider Electric
Catalog numberM9F22210
TypeM9F22210
CategoryMiniature circuit breaker (MCB)
EAN code3606481168382
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC/DC
Built-in depth44mm
Over voltage category4
Frequency50 - 60Hz
Pollution degree3
Degree of protection (IP)IP20
Rated voltage277V
Rated impulse withstand voltage Uimp6kV
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Explosion-proofNo
Rated insulation voltage Ui500V
Flush-mounted installationNo
Additional equipment possibleYes
Concurrently switching neutral conductorYes
Number of protected poles2
Width in number of modular spacings4
Current limiting class3
Connectable conductor cross section multi-wired1 - 16mm²
Ambient temperature during operating-30 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated current10A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
M9F22210 | MULTI9 C60SP 2P C 10A 10KA 480/277UL1077
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Voltage type
AC/DC
Built-in depth
44mm
Over voltage category
4
Frequency
50 .. 60Hz
Pollution degree
3
Degree of protection (IP)
IP20
Rated voltage
277V
Rated impulse withstand voltage Uimp
6kV
Connectable conductor cross section solid-core
1 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Explosion-proof
Rated insulation voltage Ui
500V
Flush-mounted installation
Additional equipment possible
Concurrently switching neutral conductor
Number of protected poles
2
Width in number of modular spacings
4
Current limiting class
3
Connectable conductor cross section multi-wired
1 .. 16mm²
Ambient temperature during operating
-30 .. 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Rated current
10A
Release characteristic
C
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
