Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44mm
Rated current16A
Voltage typeAC
Release characteristicC
Frequency50 - 60Hz
Rated voltage277V
Pollution degree3
Over voltage category4
Width in number of modular spacings6
Current limiting class3
Rated insulation voltage Ui500V
Explosion-proofNo
Ambient temperature during operating-30 - 70°C
Flush-mounted installationNo
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 16mm²
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Number of protected poles3
Additional equipment possibleYes
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Connectable conductor cross section solid-core1 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

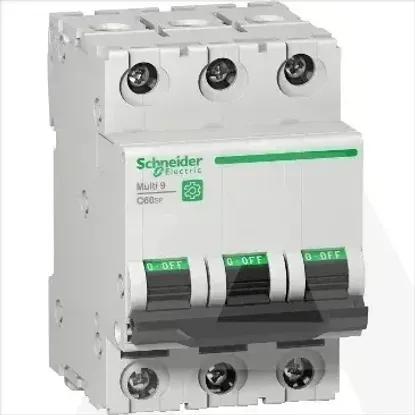

M9F22316 | MULTI9 C60SP 3P C 16A 10KA 480/277UL1077
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Rated current
16A
Voltage type
AC
Release characteristic
C
Frequency
50 .. 60Hz
Rated voltage
277V
Pollution degree
3
Over voltage category
4
Width in number of modular spacings
6
Current limiting class
3
Rated insulation voltage Ui
500V
Explosion-proof
Ambient temperature during operating
-30 .. 70°C
Flush-mounted installation
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 .. 16mm²
Number of poles (total)
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Number of protected poles
3
Additional equipment possible
Rated impulse withstand voltage Uimp
6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20kA
Connectable conductor cross section solid-core
1 .. 25mm²
