Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Over voltage category4
Rated voltage277V
Explosion-proofNo
Release characteristicC
Rated current6A
Voltage typeAC/DC
Built-in depth48mm
Current limiting class3
Frequency50 - 60Hz
Width in number of modular spacings4
Rated insulation voltage Ui500V
Pollution degree3
Connectable conductor cross section multi-wired1 - 16mm²
Degree of protection (IP)IP20
Number of protected poles2
Ambient temperature during operating-30 - 70°C
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core1 - 25mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

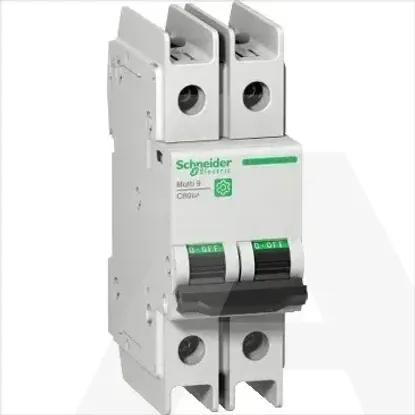

M9F42206 | MULTI9 C60BP 2P C 6A 10KA 480/277 UL489
