Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •SCHNEIDER
Technical specifications
Height65.7mm
Width16mm
Mounting methodDIN rail (top hat rail) 35 mm
Operating temperature-40 - 130°C
Closing plate requiredYes
Inflammability class of insulation material according to with UL94V0
Depth60.2mm
Type of electrical connection 1Screw connection
Number of levels1
Internally connected stagesNo
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 50mm²
Connectable conductor cross section multi-wired1.5 - 50mm²
Type of electrical connection 2Screw connection
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 50mm²
Number of clamp positions per level2
Explosion-tested version 'Ex e'Yes
ColourGrey
Rated voltage1000V
Connectable conductor cross section solid-core1.5 - 50mm²
Rated current In125A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

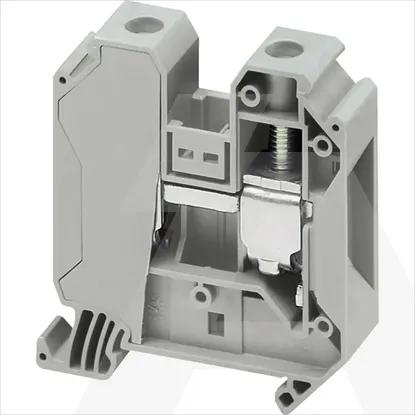

NSYTRV352 | Stez. Vijcana 35mm2 1P 1x1 Siva
