Details

  • •

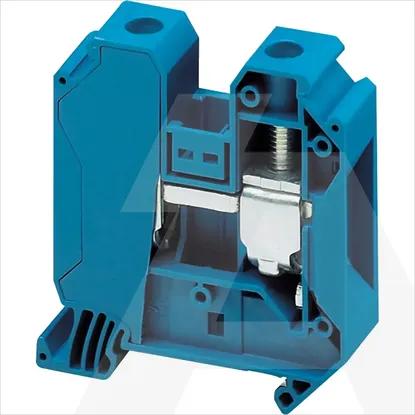

  • •Terminal blocks
  • •Feed-through terminal block
  • •Minimum order quantity: 50 pcs
  • •SCHNEIDER

Technical specifications

Depth60.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Operating temperature-40 - 130°C
Inflammability class of insulation material according to with UL94V0
Width16mm
Height65.7mm
Closing plate requiredNo
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Connectable conductor cross section multi-wired1.5 - 50mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 50mm²
Internally connected stagesNo
Number of clamp positions per level2
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 50mm²
Material insulation bodyThermoplastic
Explosion-tested version 'Ex e'Yes
ColourBlue
Rated voltage1000V
Connectable conductor cross section solid-core1.5 - 50mm²
Rated current In125A
