Details

  • •Terminal blocks
  • •Feed-through terminal block
  • •50 KOM
  • •SCHNEIDER

Technical specifications

Inflammability class of insulation material according to with UL94V0
Closing plate requiredYes
Width/grid dimension6.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Number of levels1
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Type of electrical connection 2Screw connection
Height at lowest possible mounting height47.5mm
Type of electrical connection 1Screw connection
Internally connected stagesNo
Number of clamp positions per level2
Connectable conductor cross section multi-wired0.14 - 6mm²
Connectable conductor cross section fine-strand with cable end sleeve0.2 - 4mm²
Operating temperature-40 - 130°C
Length47.7mm
Material insulation bodyThermoplastic
Connection positionSideways
Explosion-tested version 'Ex e'Yes
ColourGreen
Rated voltage1000V
Connectable conductor cross section solid-core0.14 - 6mm²
Rated current In32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

NSYTRV42GN | Stez. Vijcana 4mm2 1P 1x1 Zelena

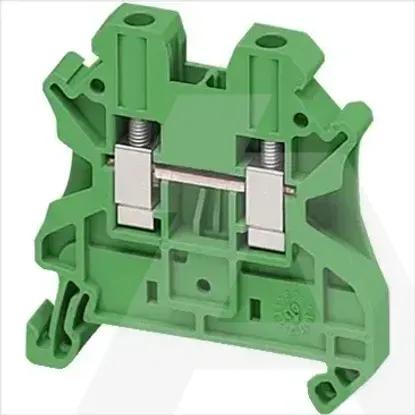

Main Product Image
