Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •SCHNEIDER
Technical specifications
ModelBasic device
Width22.5mm
Number of outputs, safety related, undelayed, with contact3
Depth120mm
Release-delay0 - 0s
With start inputYes
With approval according to ULYes
With detachable clampsYes
With feedback circuitYes
Height100mm
Number of outputs, safety related, delayed, with contact0
Type of electric connectionScrew connection
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, signalling function, delayed, with contact0
Number of outputs, signalling function, undelayed, with contact0
With approval for BG BIANo
Rated control supply voltage Us at AC 60HZ48 - 240V
Suitable for monitoring of proximity switchesYes
Rated control supply voltage Us at AC 50HZ48 - 240V
Suitable for monitoring of emergency-stop circuitsYes
With muting functionNo
Rated control supply voltage Us at DC48 - 240V
Suitable for monitoring of optoelectronic protection equipmentYes
Rail mounting possibleYes
Type of safety according to IEC 61496-14
Number of outputs, signalling function, undelayed, semiconductors0
Suitable for monitoring of magnetic switchesYes
Number of outputs, signalling function, delayed, semiconductors0
Voltage type for actuatingAC/DC
Stop category according to IEC 602040
Suitable for monitoring of valvesNo
Suitable for monitoring of tactile sensorsNo
Suitable for monitoring of position switchesYes
Performance level according to EN ISO 13849-1Level e
SIL according to IEC 615083
Evaluation inputs2-channel
With approval for TÜVYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

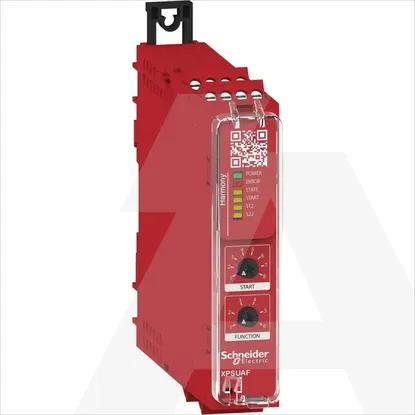

XPSUAF33AP | Sigurnosni Modul UAF CAT.4 48-230V
