Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth120mm
Rated control supply voltage Us at AC 60HZ24 - 24V
Release-delay0 - 0s
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, safety related, delayed, with contact0
With approval according to ULYes
With feedback circuitYes
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, signalling function, undelayed, with contact0
Type of electric connectionScrew connection
Rated control supply voltage Us at AC 50HZ24 - 24V
With start inputYes
ModelBasic device
Number of outputs, safety related, undelayed, semiconductors0
Height100mm
Number of outputs, signalling function, delayed, with contact0
Width22.5mm
Rated control supply voltage Us at DC24 - 24V
Type of safety according to IEC 61496-14
With muting functionNo
Suitable for monitoring of magnetic switchesYes
Performance level according to EN ISO 13849-1Level e
Evaluation inputs2-channel
SIL according to IEC 615083
Voltage type for actuatingAC/DC
Suitable for monitoring of proximity switchesYes
With approval for TÜVYes
With approval for BG BIANo
Suitable for monitoring of valvesNo
Stop category according to IEC 602040
Suitable for monitoring of tactile sensorsNo
With detachable clampsYes
Number of outputs, safety related, undelayed, with contact3
Number of outputs, signalling function, undelayed, semiconductors1
Rail mounting possibleYes
Suitable for monitoring of emergency-stop circuitsYes
Suitable for monitoring of optoelectronic protection equipmentYes
Suitable for monitoring of position switchesYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

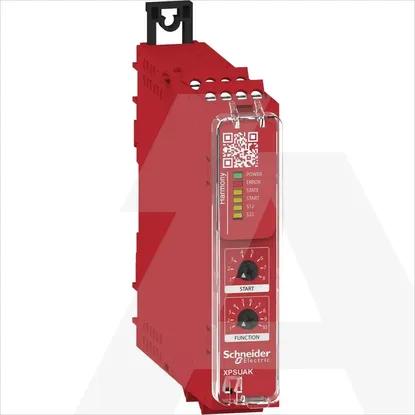

XPSUAK12AP | Sigurnosni Modul UAK CAT.4 24V
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Device for monitoring of safety-related circuits
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Depth
120mm
Rated control supply voltage Us at AC 60HZ
24 .. 24V
Release-delay
0 .. 0s
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, safety related, delayed, with contact
0
With approval according to UL
With feedback circuit
Number of outputs, signalling function, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ
24 .. 24V
With start input
Model
Basic device
Number of outputs, safety related, undelayed, semiconductors
0
Height
100mm
Number of outputs, signalling function, delayed, with contact
0
Width
22.5mm
Rated control supply voltage Us at DC
24 .. 24V
Type of safety according to IEC 61496-1
4
With muting function
Suitable for monitoring of magnetic switches
Performance level according to EN ISO 13849-1
Level e
Evaluation inputs
2-channel
SIL according to IEC 61508
3
Voltage type for actuating
AC/DC
Suitable for monitoring of proximity switches
With approval for TÜV
With approval for BG BIA
Suitable for monitoring of valves
Stop category according to IEC 60204
0
Suitable for monitoring of tactile sensors
With detachable clamps
Number of outputs, safety related, undelayed, with contact
3
Number of outputs, signalling function, undelayed, semiconductors
1
Rail mounting possible
Suitable for monitoring of emergency-stop circuits
Suitable for monitoring of optoelectronic protection equipment
Suitable for monitoring of position switches
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
