Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •SCHNEIDER
Technical specifications
ModelBasic device
With detachable clampsYes
With approval according to ULYes
Number of outputs, safety related, delayed, semiconductors0
With start inputYes
Width22.5mm
Release-delay0 - 0s
Height100mm
Number of outputs, safety related, undelayed, semiconductors0
Depth120mm
With feedback circuitYes
Number of outputs, safety related, delayed, with contact0
Number of outputs, signalling function, delayed, with contact0
Number of outputs, signalling function, undelayed, with contact0
Number of outputs, safety related, undelayed, with contact3
Rated control supply voltage Us at DC48 - 240V
With muting functionNo
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, signalling function, undelayed, semiconductors0
Type of electric connectionSpring clamp connection
Rail mounting possibleYes
Rated control supply voltage Us at AC 60HZ48 - 240V
Voltage type for actuatingAC/DC
Evaluation inputs2-channel
Performance level according to EN ISO 13849-1Level e
Suitable for monitoring of valvesNo
With approval for TÜVYes
SIL according to IEC 615083
Suitable for monitoring of optoelectronic protection equipmentYes
Suitable for monitoring of emergency-stop circuitsYes
Type of safety according to IEC 61496-14
Suitable for monitoring of magnetic switchesYes
Suitable for monitoring of proximity switchesYes
Stop category according to IEC 602040
Rated control supply voltage Us at AC 50HZ48 - 240V
With approval for BG BIANo
Suitable for monitoring of tactile sensorsNo
Suitable for monitoring of position switchesYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

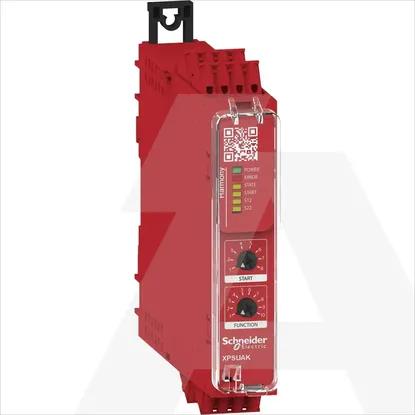

XPSUAK32AC | Sigurnosni Modul UAK CAT.4 48-230V
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Device for monitoring of safety-related circuits
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Model
Basic device
With detachable clamps
With approval according to UL
Number of outputs, safety related, delayed, semiconductors
0
With start input
Width
22.5mm
Release-delay
0 .. 0s
Height
100mm
Number of outputs, safety related, undelayed, semiconductors
0
Depth
120mm
With feedback circuit
Number of outputs, safety related, delayed, with contact
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, safety related, undelayed, with contact
3
Rated control supply voltage Us at DC
48 .. 240V
With muting function
Number of outputs, signalling function, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, semiconductors
0
Type of electric connection
Spring clamp connection
Rail mounting possible
Rated control supply voltage Us at AC 60HZ
48 .. 240V
Voltage type for actuating
AC/DC
Evaluation inputs
2-channel
Performance level according to EN ISO 13849-1
Level e
Suitable for monitoring of valves
With approval for TÜV
SIL according to IEC 61508
3
Suitable for monitoring of optoelectronic protection equipment
Suitable for monitoring of emergency-stop circuits
Type of safety according to IEC 61496-1
4
Suitable for monitoring of magnetic switches
Suitable for monitoring of proximity switches
Stop category according to IEC 60204
0
Rated control supply voltage Us at AC 50HZ
48 .. 240V
With approval for BG BIA
Suitable for monitoring of tactile sensors
Suitable for monitoring of position switches
