Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •SCHNEIDER
Technical specifications
Height100mm
Release-delay0 - 0s
ModelBasic device
Width22.5mm
With detachable clampsYes
Depth120mm
With approval according to ULYes
With start inputYes
Number of outputs, safety related, delayed, with contact0
Rail mounting possibleYes
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, signalling function, undelayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors0
Number of outputs, signalling function, delayed, with contact0
Number of outputs, signalling function, delayed, semiconductors0
Type of electric connectionScrew connection
With feedback circuitYes
Number of outputs, safety related, undelayed, with contact3
Number of outputs, safety related, delayed, semiconductors0
Suitable for monitoring of magnetic switchesYes
Rated control supply voltage Us at AC 60HZ48 - 240V
Suitable for monitoring of position switchesYes
Suitable for monitoring of optoelectronic protection equipmentYes
Suitable for monitoring of proximity switchesYes
Rated control supply voltage Us at DC48 - 240V
Performance level according to EN ISO 13849-1Level e
With muting functionNo
Suitable for monitoring of valvesNo
Rated control supply voltage Us at AC 50HZ48 - 240V
Suitable for monitoring of emergency-stop circuitsYes
Type of safety according to IEC 61496-14
Suitable for monitoring of tactile sensorsNo
Stop category according to IEC 602040
SIL according to IEC 615083
Voltage type for actuatingAC/DC
With approval for BG BIANo
Evaluation inputs2-channel
With approval for TÜVYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

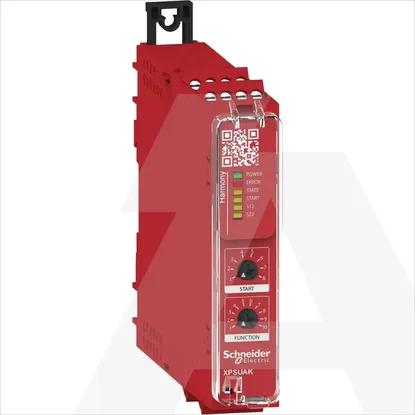

XPSUAK32AP | Sigurnosni Modul UAK CAT.4 48-230V
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Device for monitoring of safety-related circuits
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Height
100mm
Release-delay
0 .. 0s
Model
Basic device
Width
22.5mm
With detachable clamps
Depth
120mm
With approval according to UL
With start input
Number of outputs, safety related, delayed, with contact
0
Rail mounting possible
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, delayed, semiconductors
0
Type of electric connection
Screw connection
With feedback circuit
Number of outputs, safety related, undelayed, with contact
3
Number of outputs, safety related, delayed, semiconductors
0
Suitable for monitoring of magnetic switches
Rated control supply voltage Us at AC 60HZ
48 .. 240V
Suitable for monitoring of position switches
Suitable for monitoring of optoelectronic protection equipment
Suitable for monitoring of proximity switches
Rated control supply voltage Us at DC
48 .. 240V
Performance level according to EN ISO 13849-1
Level e
With muting function
Suitable for monitoring of valves
Rated control supply voltage Us at AC 50HZ
48 .. 240V
Suitable for monitoring of emergency-stop circuits
Type of safety according to IEC 61496-1
4
Suitable for monitoring of tactile sensors
Stop category according to IEC 60204
0
SIL according to IEC 61508
3
Voltage type for actuating
AC/DC
With approval for BG BIA
Evaluation inputs
2-channel
With approval for TÜV
