Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •SCHNEIDER
Technical specifications
Height100mm
ModelBasic device
With detachable clampsYes
With approval according to ULYes
Depth120mm
Release-delay0 - 900s
Number of outputs, safety related, undelayed, semiconductors0
With feedback circuitYes
With start inputYes
Number of outputs, safety related, undelayed, with contact3
Number of outputs, safety related, delayed, with contact4
Number of outputs, signalling function, delayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors0
Number of outputs, signalling function, undelayed, with contact0
Number of outputs, safety related, delayed, semiconductors0
Rated control supply voltage Us at DC48 - 240V
Rail mounting possibleYes
Rated control supply voltage Us at AC 60HZ48 - 240V
Rated control supply voltage Us at AC 50HZ48 - 240V
Type of electric connectionScrew connection
With muting functionNo
With approval for BG BIANo
Suitable for monitoring of valvesNo
Suitable for monitoring of magnetic switchesYes
Suitable for monitoring of position switchesYes
Suitable for monitoring of emergency-stop circuitsYes
Suitable for monitoring of tactile sensorsNo
Suitable for monitoring of proximity switchesYes
Suitable for monitoring of optoelectronic protection equipmentYes
SIL according to IEC 615083
Voltage type for actuatingAC/DC
Number of outputs, signalling function, delayed, semiconductors0
Stop category according to IEC 602040 + 1
Evaluation inputs2-channel
With approval for TÜVYes
Width45mm
Type of safety according to IEC 61496-14
Performance level according to EN ISO 13849-1Level e
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

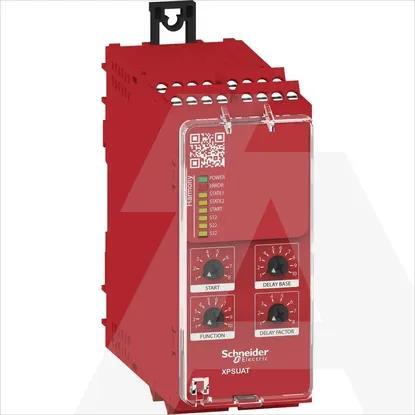

XPSUAT33A3AP | Sigurnosni Modul UAT CAT.4 48-230V
