Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •SCHNEIDER
Technical specifications
ModelBasic device
Height100mm
Depth120mm
Release-delay0 - 0s
With approval according to ULYes
With detachable clampsYes
With start inputYes
Number of outputs, safety related, delayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors0
Number of outputs, safety related, undelayed, with contact4
With feedback circuitYes
Number of outputs, signalling function, undelayed, with contact0
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, signalling function, delayed, with contact0
Number of outputs, signalling function, delayed, semiconductors0
Rated control supply voltage Us at DC24 - 24V
Rated control supply voltage Us at AC 60HZ24 - 24V
Type of electric connectionSpring clamp connection
Suitable for monitoring of magnetic switchesYes
Rated control supply voltage Us at AC 50HZ24 - 24V
Rail mounting possibleYes
Suitable for monitoring of emergency-stop circuitsYes
With approval for BG BIANo
Suitable for monitoring of proximity switchesYes
With muting functionNo
Suitable for monitoring of valvesNo
Suitable for monitoring of tactile sensorsNo
Suitable for monitoring of position switchesYes
Suitable for monitoring of optoelectronic protection equipmentYes
Voltage type for actuatingAC/DC
Stop category according to IEC 602040
Evaluation inputs2-channel
SIL according to IEC 615083
With approval for TÜVYes
Width45mm
Type of safety according to IEC 61496-14
Performance level according to EN ISO 13849-1Level e
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

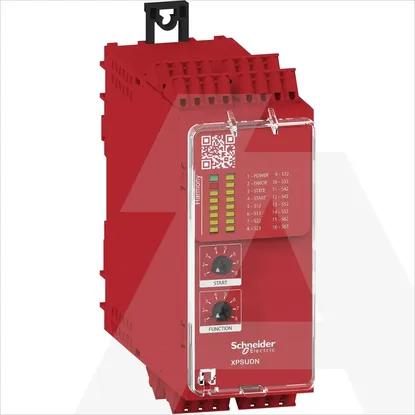

XPSUDN13AC | Sigurnosni Modul UDN CAT.4 24V
