Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of outputs, safety related, undelayed, with contact4
With approval according to ULYes
Release-delay0 - 0s
ModelBasic device
Depth120mm
Number of outputs, signalling function, undelayed, with contact0
With detachable clampsYes
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, safety related, delayed, with contact0
Height100mm
With start inputYes
Number of outputs, signalling function, delayed, with contact0
Type of electric connectionScrew connection
Rail mounting possibleYes
Rated control supply voltage Us at AC 50HZ24 - 24V
Rated control supply voltage Us at DC24 - 24V
Number of outputs, signalling function, delayed, semiconductors0
With muting functionNo
With approval for BG BIANo
Rated control supply voltage Us at AC 60HZ24 - 24V
Number of outputs, signalling function, undelayed, semiconductors0
With feedback circuitYes
Stop category according to IEC 602040
Evaluation inputs2-channel
Suitable for monitoring of tactile sensorsNo
Suitable for monitoring of position switchesYes
Suitable for monitoring of optoelectronic protection equipmentYes
SIL according to IEC 615083
Suitable for monitoring of emergency-stop circuitsYes
Suitable for monitoring of valvesNo
With approval for TÜVYes
Suitable for monitoring of magnetic switchesYes
Voltage type for actuatingAC/DC
Suitable for monitoring of proximity switchesYes
Width45mm
Type of safety according to IEC 61496-14
Performance level according to EN ISO 13849-1Level e
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

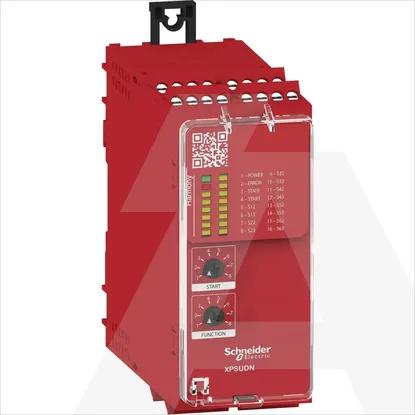

XPSUDN13AP | Sigurnosni Modul UDN CAT.4 24V
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Device for monitoring of safety-related circuits
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Number of outputs, safety related, undelayed, with contact
4
With approval according to UL
Release-delay
0 .. 0s
Model
Basic device
Depth
120mm
Number of outputs, signalling function, undelayed, with contact
0
With detachable clamps
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, safety related, delayed, with contact
0
Height
100mm
With start input
Number of outputs, signalling function, delayed, with contact
0
Type of electric connection
Screw connection
Rail mounting possible
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Rated control supply voltage Us at DC
24 .. 24V
Number of outputs, signalling function, delayed, semiconductors
0
With muting function
With approval for BG BIA
Rated control supply voltage Us at AC 60HZ
24 .. 24V
Number of outputs, signalling function, undelayed, semiconductors
0
With feedback circuit
Stop category according to IEC 60204
0
Evaluation inputs
2-channel
Suitable for monitoring of tactile sensors
Suitable for monitoring of position switches
Suitable for monitoring of optoelectronic protection equipment
SIL according to IEC 61508
3
Suitable for monitoring of emergency-stop circuits
Suitable for monitoring of valves
With approval for TÜV
Suitable for monitoring of magnetic switches
Voltage type for actuating
AC/DC
Suitable for monitoring of proximity switches
Width
45mm
Type of safety according to IEC 61496-1
4
Performance level according to EN ISO 13849-1
Level e
