Details
- •Data and telecommunication

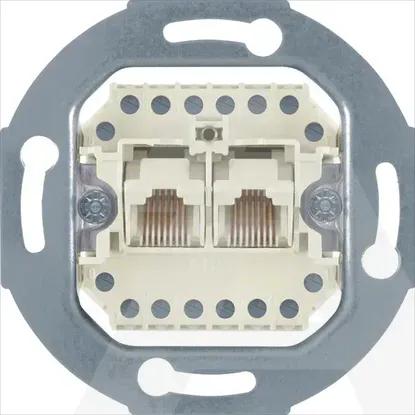

- •Data communication connection box copper (twisted pair)
- •1 KOM
- •HAGER
Technical specifications
Category3
Type of fasteningScrewing
Connection typeScrew
Shielded housingYes
Outlet directionInclined
ColourWhite
RAL-number1013
Shielded busesNo
Suitable for number of connectors2
Duct installationYes
Assembly arrangementBasic element
Mounting method shielding connectionScrew
Separate strain reliefNo
Separate earthing connectionNo
Mechanical codingNo
Depth of device45mm
Floor box/sub-floor mountedYes
Number of modules (module system)1
Design suitableYes
Colour codingNo
With label spaceNo
With buses/couplingsYes
Surface mountingNo
Degree of protection (IP)IP20
Height of device70.4mm
Type of connectorRJ45 8(8)
Width of device70.4mm
Flush-mounted installationYes
With dust coverNo
With terminal resistorNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
4539
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Data and telecommunication
- Data communication connection box copper (twisted pair)
- 1 KOM
- HAGER
DetailsTechnical specificationsRelated products
Technical specifications
Category
3
Type of fastening
Screwing
Connection type
Screw
Shielded housing
Outlet direction
Inclined
Colour
White
RAL-number
1013
Shielded buses
Suitable for number of connectors
2
Duct installation
Assembly arrangement
Basic element
Mounting method shielding connection
Screw
Separate strain relief
Separate earthing connection
Mechanical coding
Depth of device
45mm
Floor box/sub-floor mounted
Number of modules (module system)
1
Design suitable
Colour coding
With label space
With buses/couplings
Surface mounting
Degree of protection (IP)
IP20
Height of device
70.4mm
Type of connector
RJ45 8(8)
Width of device
70.4mm
Flush-mounted installation
With dust cover
With terminal resistor
