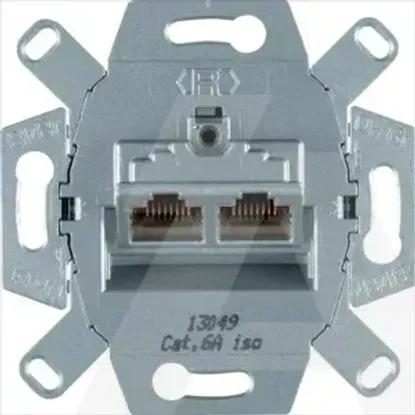

Details
- •Data and telecommunication
- •Data communication connection box copper (twisted pair)
- •1 KOM
- •HAGER
Technical specifications
Connection typeLSA
RAL-number-
Suitable for number of connectors2
Category6A (IEC)
Outlet directionInclined
Assembly arrangementBasic element
Separate earthing connectionYes
Mounting method shielding connectionScrew
Shielded housingYes
Type of fasteningScrewing
Type of connector2x RJ45 8(8)
Shielded busesYes
Duct installationYes
Mechanical codingNo
Separate strain reliefYes
Colour codingYes
Flush-mounted installationYes
With buses/couplingsYes
Depth of device45mm
Height of device70.4mm
Degree of protection (IP)IP20
With label spaceNo
With dust coverNo
Design suitableYes
Number of modules (module system)1
Width of device70.4mm
Surface mountingNo
Floor box/sub-floor mountedYes
With terminal resistorYes
