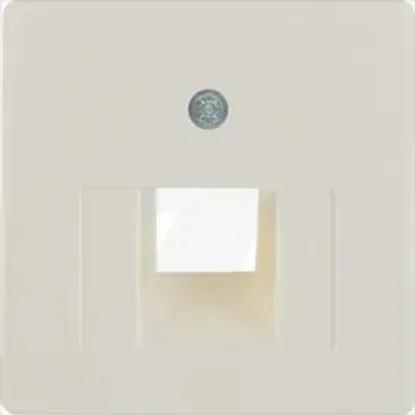

Details
- •Domestic switching devices
- •Insert/cover for communication technology
- •1 KOM
- •HAGER
Technical specifications
Mounting methodFlush mounted (plaster)
With hinged lidNo
Halogen freeYes
Suitable for number of connectors1
Imprintable labelImprintable label snap-in in intermediate ring
With strain reliefNo
UtilizationUAE/IAE (ISDN)
Assembly arrangementCentral cover plate for intermediate ring
MaterialPlastic
Outlet directionInclined
Material qualityThermoplastic
Surface protectionUntreated
Type of fasteningMounting with screw
ColourWhite
Luster terminalNo
Surface finishingGlossy
Height of device51.5mm
With dust coverNo
TransparentNo
Impact strengthIK05
Width of device51.5mm
Suitable for degree of protection (IP)IP20
With buses/couplingsNo
Support ringNo
RAL-number (similar)1013
With imprintNo
Number of modules (module system)-
Min. depth of built-in installation box0mm
Depth of device16.6mm
Anti-bacterial treatmentNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
146802
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Domestic switching devices
- Insert/cover for communication technology
- 1 KOM
- HAGER
DetailsTechnical specifications
Technical specifications
Mounting method
Flush mounted (plaster)
With hinged lid
Halogen free
Suitable for number of connectors
1
Imprintable label
Imprintable label snap-in in intermediate ring
With strain relief
Utilization
UAE/IAE (ISDN)
Assembly arrangement
Central cover plate for intermediate ring
Material
Plastic
Outlet direction
Inclined
Material quality
Thermoplastic
Surface protection
Untreated
Type of fastening
Mounting with screw
Colour
White
Luster terminal
Surface finishing
Glossy
Height of device
51.5mm
With dust cover
Transparent
Impact strength
IK05
Width of device
51.5mm
Suitable for degree of protection (IP)
IP20
With buses/couplings
Support ring
RAL-number (similar)
1013
With imprint
Number of modules (module system)
-
Min. depth of built-in installation box
0mm
Depth of device
16.6mm
Anti-bacterial treatment
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
