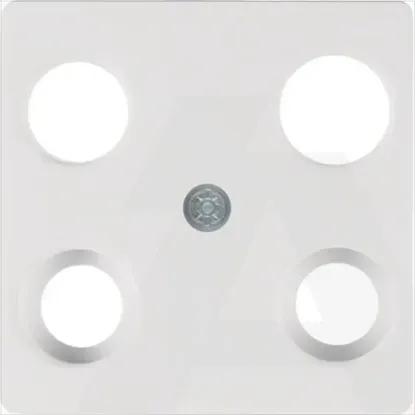

Details
- •Domestic switching devices
- •Insert/cover for communication technology
- •1 KOM
- •HAGER
Technical specifications
Assembly arrangementCentral cover plate for intermediate ring
Mounting methodFlush mounted (plaster)
ColourWhite
Halogen freeYes
MaterialPlastic
Surface protectionUntreated
Suitable for number of connectors4
Imprintable labelWithout indication field
With dust coverNo
UtilizationOther
With strain reliefNo
RAL-number (similar)9010
Luster terminalNo
Material qualityThermoplastic
Surface finishingMatt
With imprintNo
TransparentNo
Suitable for degree of protection (IP)IP20
With buses/couplingsNo
Width of device51.5mm
Anti-bacterial treatmentNo
Number of modules (module system)-
Min. depth of built-in installation box0mm
Support ringNo
Impact strengthIK05
Height of device51.5mm
Type of fasteningMounting with screw
Depth of device8mm
With hinged lidNo
